STEP and DWG geometry for shaft center distance, foot pattern and NEMA input envelope checks.
Open LibraryAGMA 6034 service factor indexed catalog

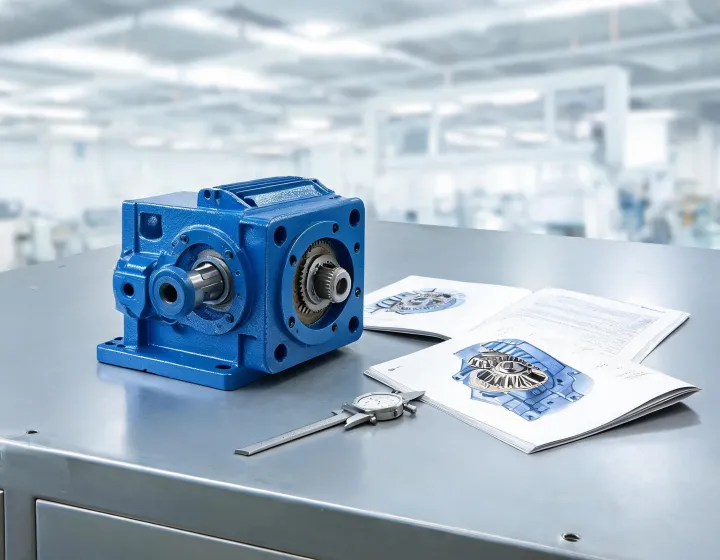

WinSmith worm gear reducers for compact right-angle motion.
E, D, M and Type 700 families are organized for maintenance teams that need ratio, frame, input style and C-face NEMA fit confirmed before a purchase order is released.
60+ years catalog depth1/4-75 HP range5:1-100:1 ratios
Grouped specification table
Catalog values engineers ask for first.
Reducer families
E SeriesFractional HP worm units, 5:1-60:1 ratios, compact aluminum housings
D SeriesCast iron right-angle reducers through 7.5 HP with hollow or solid output shafts
M SeriesHelical-worm reducers for higher efficiency and lower thermal rise at continuous duty
Selection data
Input optionsQuill, C-face NEMA, integral gearmotor and separate input shaft configurations
Service factorAGMA 6034 duty review with shock load, hours per day and start-stop frequency
LubricationOil bath guidance by mount position, ambient temperature and reducer size
1.42 SFtypical conveyor review
75 HPupper catalog motor range
100:1single reducer ratios
1750 rpmcommon NEMA input speed
Engineering Downloads
STEP models, serialized datasheets, installation manuals and ratio selection tables for WinSmith gearbox repair or replacement work.
Datasheets
Torque, ratio, frame, thermal and lubrication references organized by E, D, M and Type 700 families.
Download PDFInstallation Manuals
Mounting position, breather, oil level, input coupling and shaft alignment instructions for field crews.
Browse ManualsCatalogs
Printed catalog references for legacy units, dimensional interchange and Peerless aftermarket programs.
Request CatalogLooking for legacy 1995-2010 documents? Archive request
Minimal efficient support
Six reasons maintenance teams shortlist WinSmith.
AGMA service factor
Duty cycles are checked against shock, starts per hour and daily operating time.
C-face NEMA mounts
Standard motor interfaces reduce field fabrication during retrofit work.
Right-angle envelopes
Compact worm gearing fits conveyors, mixers and packaging stations with tight space.
Repair path clarity
Gearbox repair requests begin with frame, ratio, serial and failure mode capture.
1/4-75 HP coverage
Catalog families span fractional units through heavier cast-iron reducers.
Documented quality
ISO 9001 workflows keep datasheets, inspection notes and purchase records traceable.
Send the nameplate. We will return the replacement path.
Share ratio, frame, motor HP, input style and mounting position. A spec reviewer can identify direct replacement, repair kit or engineered substitute options.
